OpenWeatherMap Tool Node

Agent tool for fetching current weather or 5-day/3-hour forecast from OpenWeatherMap

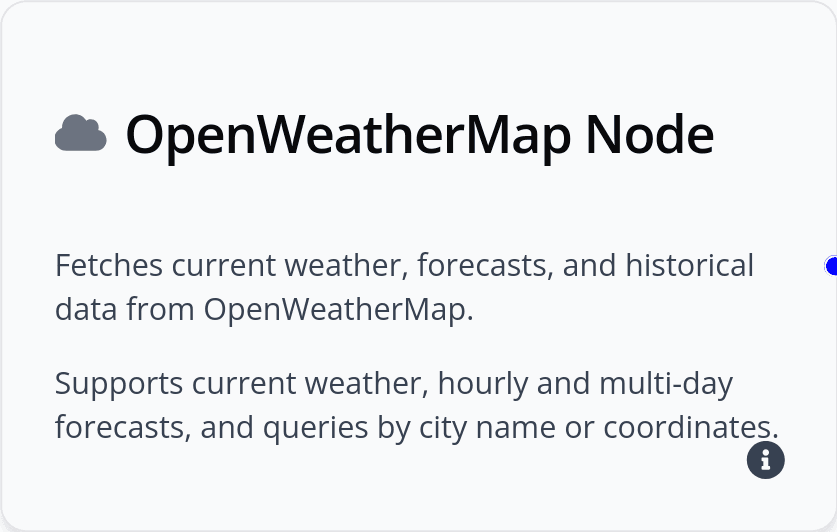

OpenWeatherMap Tool Node image

This node exposes a single tool that queries OpenWeatherMap endpoints ("weather" for current conditions and "forecast" for 5 day / 3 hour forecasts).

Actions

  • Builds request to OpenWeatherMap base URL with params: appid (from secure store), units, lang, and either q (city) or lat & lon.
  • Parses JSON response and returns it on success.
  • Handles errors by returning structured error objects containing an error message and optional status or details.

Inputs (fields)

  • city: optional string — City name (e.g., "London"). Either city or lat/lon required.
  • lat: optional float — Latitude for coordinate-based lookup.
  • lon: optional float — Longitude for coordinate-based lookup.
  • units: string (default "metric") — Units: "metric", "imperial", or "standard".
  • endpoint: string (default "weather") — OpenWeatherMap endpoint: "weather" (current) or "forecast" (5 day / 3 hour).
  • lang: string (default "en") — Language code for descriptions (e.g., "en").
  • timeout: int (default 10) — HTTP request timeout in seconds.

Outputs

  • Returns parsed OpenWeatherMap JSON response on success.
  • On failure returns a dict with an "error" key and additional fields like "status_code" or "details" when available.

Behavior and Constraints

  • Coordinate precedence: when lat and lon are provided they take precedence over city.
  • Endpoint validation: only "weather" and "forecast" are accepted.
  • JSON parsing: attempts to decode JSON and returns a descriptive error if decoding fails.

Error Handling

  • Invalid endpoint or missing location parameters return structured error objects.
  • Failure to retrieve the API key returns a clear error.
  • Non-200 responses from the API are returned as structured errors including status code and response body where available.
  • Network or request exceptions return an error with details.
